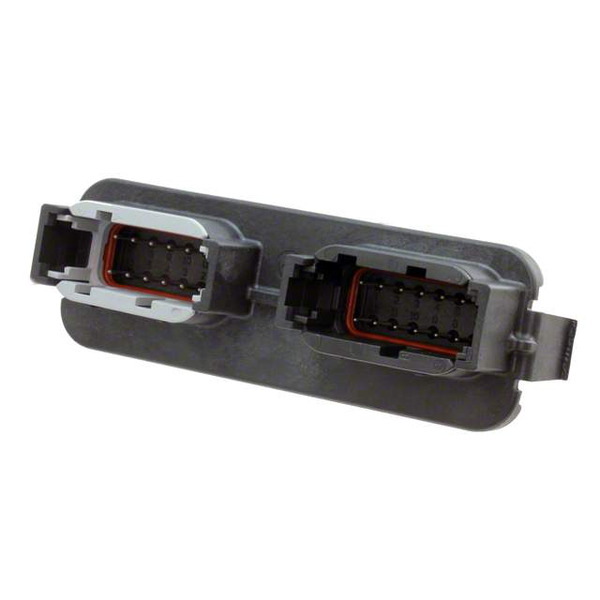

DTM13-12PA-12PB-R008
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy DTM13-12PA-12PB-R008 with confidence from AtechElec.com, 1 Year Warranty
See Product Specifications for product details.
Buy DTM13-12PA-12PB-R008 with confidence from AtechElec.com, 1 Year Warranty
Request a Quote
| Part No. | DTM13-12PA-12PB-R008 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 24POS T/H R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $21.42 | $19.339 | $18.528 | $17.37 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $16.791 | $15.865 | $15.401 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | DTM |
| Row Spacing - Mating: | - |
| Pitch - Mating: | - |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 1734-1131 1899781-5 DTM13-12PA12PBR008 DTM1312PA12PBR008 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 24 (12 + 12) |
| Mounting Type: | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Material Flammability Rating: | - |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Plastic |
| Insulation Height: | 1.378" (35.00mm) |
| Insulation Color: | Gray |
| Ingress Protection: | IP68/IP6K9K |
| Features: | Mounting Flange |
| Fastening Type: | Latch Holder |
| Detailed Description: | Connector Header Panel Mount, Through Hole, Right Angle 24 (12 + 12) position |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Circular |
| Contact Material: | - |
| Contact Length - Post: | 0.112" (2.84mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Nickel |
| Connector Type: | Header |
| Applications: | Automotive |
| Email: | info@atechelec.com |
Introduce
We can supply DTM13-12PA-12PB-R008, use the request quote form to request DTM13-12PA-12PB-R008 pirce and lead time.Atech Electronics a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DTM13-12PA-12PB-R008.The price and lead time for DTM13-12PA-12PB-R008 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DTM13-12PA-12PB-R008.We look forward to working with you to establish long-term relations of cooperation
