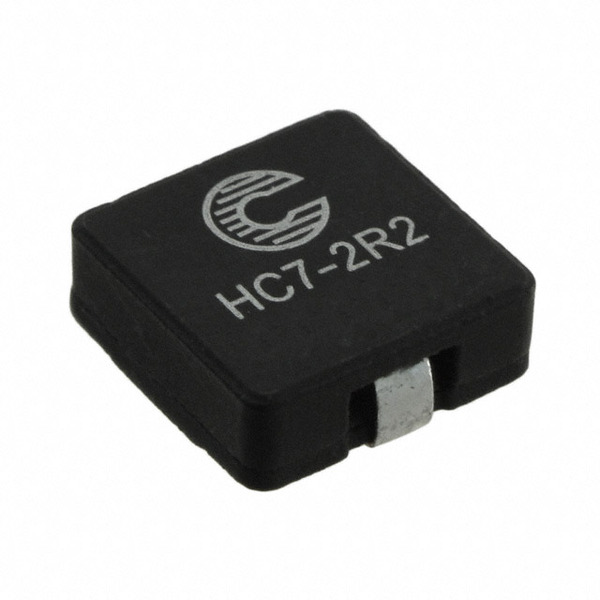

HC7-2R2-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy HC7-2R2-R with confidence from AtechElec.com, 1 Year Warranty
See Product Specifications for product details.
Buy HC7-2R2-R with confidence from AtechElec.com, 1 Year Warranty
Request a Quote
| Part No. | HC7-2R2-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 2.2UH 13A 5.2 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $5.82 | $5.29 | $3.597 | |||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.543" L x 0.512" W (13.80mm x 13.00mm) |
| Shielding: | Unshielded |
| Series: | HC7 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Original-Reel® |
| Package / Case: | Nonstandard |
| Other Names: | 513-1166-6 |
| Operating Temperature: | -40°C ~ 155°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Iron Powder |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 2.2µH |
| Height - Seated (Max): | 0.217" (5.50mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 2.2µH Unshielded Wirewound Inductor 13A 5.2 mOhm Max Nonstandard |
| DC Resistance (DCR): | 5.2 mOhm Max |
| Current Rating: | 13A |
| Current - Saturation: | 23.6A |
| Email: | info@atechelec.com |
Introduce
We can supply HC7-2R2-R, use the request quote form to request HC7-2R2-R pirce and lead time.Atech Electronics a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HC7-2R2-R.The price and lead time for HC7-2R2-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HC7-2R2-R.We look forward to working with you to establish long-term relations of cooperation
