SD3114-4R7-R
Bussmann (Eaton)

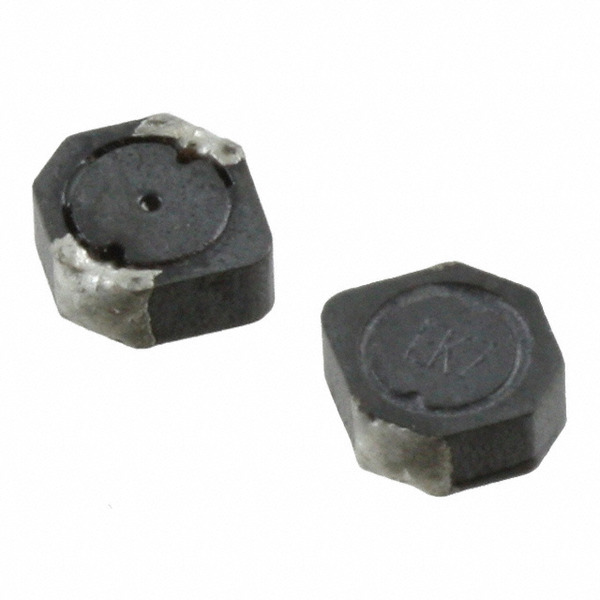

Images are for reference only.
See Product Specifications for product details.
Buy SD3114-4R7-R with confidence from AtechElec.com, 1 Year Warranty
See Product Specifications for product details.
Buy SD3114-4R7-R with confidence from AtechElec.com, 1 Year Warranty
Request a Quote
| Part No. | SD3114-4R7-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 4.7UH 770MA 251 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.91 | $2.684 | $1.879 | $1.521 | $1.387 | |
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±30% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.122" L x 0.122" W (3.10mm x 3.10mm) |
| Shielding: | Shielded |
| Series: | SD3114 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 513-1561-1 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Ferrite |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 4.7µH |
| Height - Seated (Max): | 0.055" (1.40mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 4.7µH Shielded Wirewound Inductor 770mA 251 mOhm Nonstandard |
| DC Resistance (DCR): | 251 mOhm |
| Current Rating: | 770mA |
| Current - Saturation: | 1.14A |
| Email: | info@atechelec.com |
Introduce
We can supply SD3114-4R7-R, use the request quote form to request SD3114-4R7-R pirce and lead time.Atech Electronics a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SD3114-4R7-R.The price and lead time for SD3114-4R7-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SD3114-4R7-R.We look forward to working with you to establish long-term relations of cooperation
