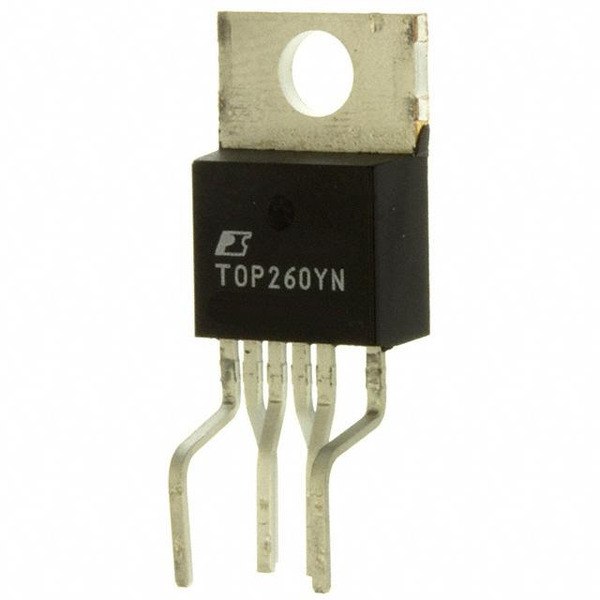

TOP260YN
Power Integrations
Images are for reference only.
See Product Specifications for product details.
Buy TOP260YN with confidence from AtechElec.com, 1 Year Warranty
See Product Specifications for product details.
Buy TOP260YN with confidence from AtechElec.com, 1 Year Warranty
Request a Quote
| Part No. | TOP260YN |
|---|---|
| Manufacturer | Power Integrations |
| Description | IC OFFLINE SWIT PROG OVP TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.78 | $4.267 | $3.841 | $3.499 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $3.158 | $2.833 | $2.39 | $2.27 | ||
Specifications
Data sheet
| Voltage - Supply (Vcc/Vdd): | - |
|---|---|
| Voltage - Breakdown: | 700V |
| Topology: | Flyback |
| Supplier Device Package: | TO-220-7C |
| Series: | TOPSwitch®-HX |
| Power (Watts): | 275W |
| Packaging: | Tube |
| Package / Case: | TO-220-7 (Formed Leads), 6 Leads |
| Output Isolation: | Isolated |
| Other Names: | 596-1214-5 |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Yes |
| Frequency - Switching: | 66kHz |
| Fault Protection: | Current Limiting, Over Temperature, Over Voltage |
| Duty Cycle: | 78% |
| Detailed Description: | Converter Offline Flyback Topology 66kHz TO-220-7C |
| Control Features: | - |
| Email: | info@atechelec.com |
Introduce
We can supply TOP260YN, use the request quote form to request TOP260YN pirce and lead time.Atech Electronics a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TOP260YN.The price and lead time for TOP260YN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TOP260YN.We look forward to working with you to establish long-term relations of cooperation
