TMM-116-01-G-S-SM
Samtec, Inc.

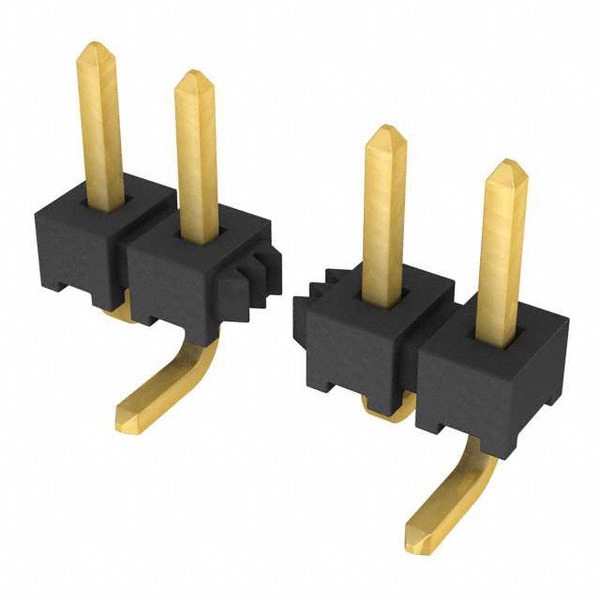

Images are for reference only.
See Product Specifications for product details.
Buy TMM-116-01-G-S-SM with confidence from AtechElec.com, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-116-01-G-S-SM with confidence from AtechElec.com, 1 Year Warranty
Request a Quote
| Part No. | TMM-116-01-G-S-SM |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 16POS SNGL 2MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $4.37 | $3.789 | $3.206 | $2.551 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $2.077 | $1.895 | $1.822 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | TMM |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | SAM1168-16 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 16 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Insulation Height: | 0.059" (1.50mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Surface Mount 16 position 0.079" (2.00mm) |
| Current Rating: | 3.2A per Contact |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | - |
| Contact Length - Mating: | 0.126" (3.20mm) |
| Contact Finish Thickness - Post: | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating: | 20.0µin (0.51µm) |
| Contact Finish - Post: | Gold |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
