TMM-116-01-L-D
Samtec, Inc.

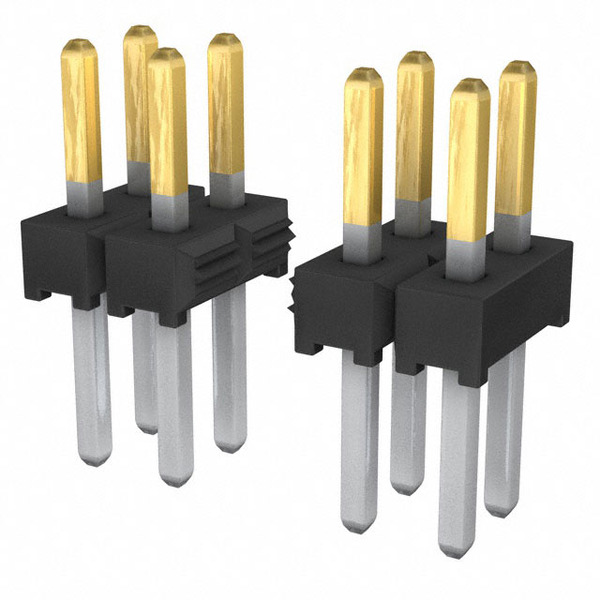

Images are for reference only.
See Product Specifications for product details.
Buy TMM-116-01-L-D with confidence from AtechElec.com, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-116-01-L-D with confidence from AtechElec.com, 1 Year Warranty
Request a Quote
| Part No. | TMM-116-01-L-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 32POS DBL 2MM T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.20 | |||||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | TMM |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Tube |
| Overall Contact Length: | 0.323" (8.20mm) |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 32 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Insulation Height: | 0.059" (1.50mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 32 position 0.079" (2.00mm) |
| Current Rating: | 3.2A per Contact |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.138" (3.50mm) |
| Contact Length - Mating: | 0.126" (3.20mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@atechelec.com |
Introduce
We can supply TMM-116-01-L-D, use the request quote form to request TMM-116-01-L-D pirce and lead time.Atech Electronics a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TMM-116-01-L-D.The price and lead time for TMM-116-01-L-D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TMM-116-01-L-D.We look forward to working with you to establish long-term relations of cooperation
